| 产品规格 |

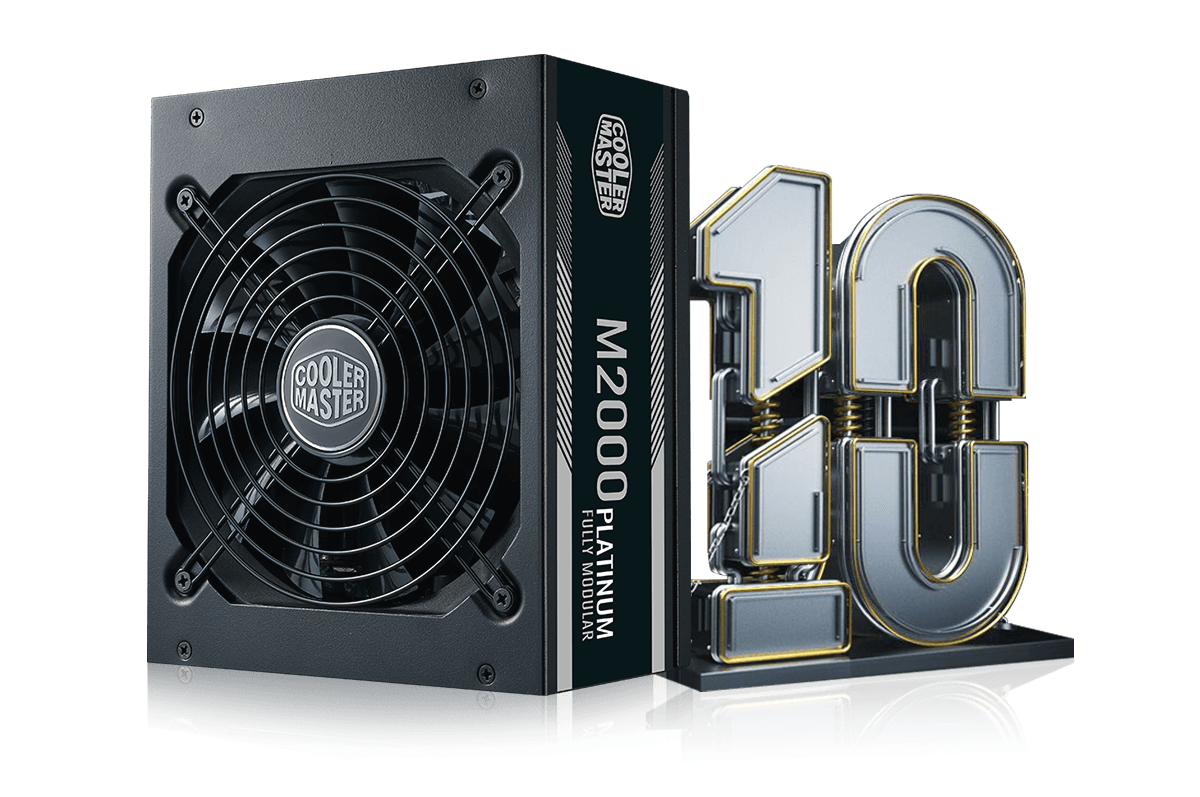

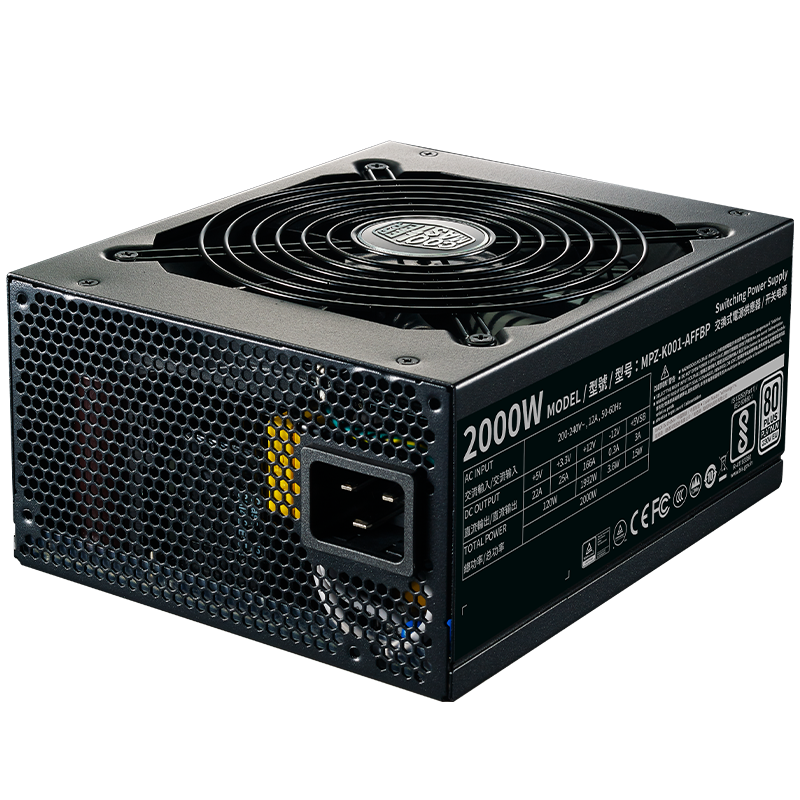

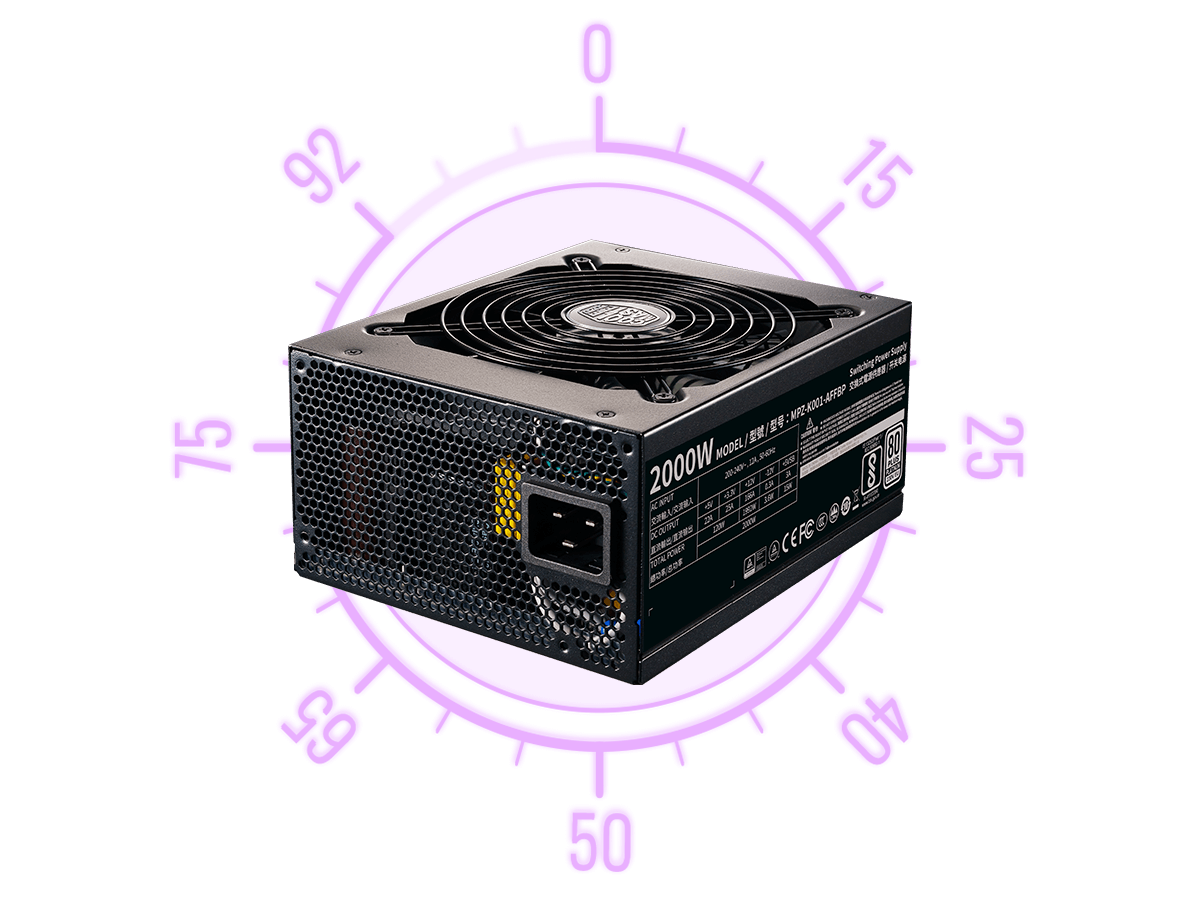

| 产品名称 | M2000 Platinum (230V) |
| 项目代码 | MPZ-K001-AFFBP |
| 遵守规范 | ATX 12V 2.52 |

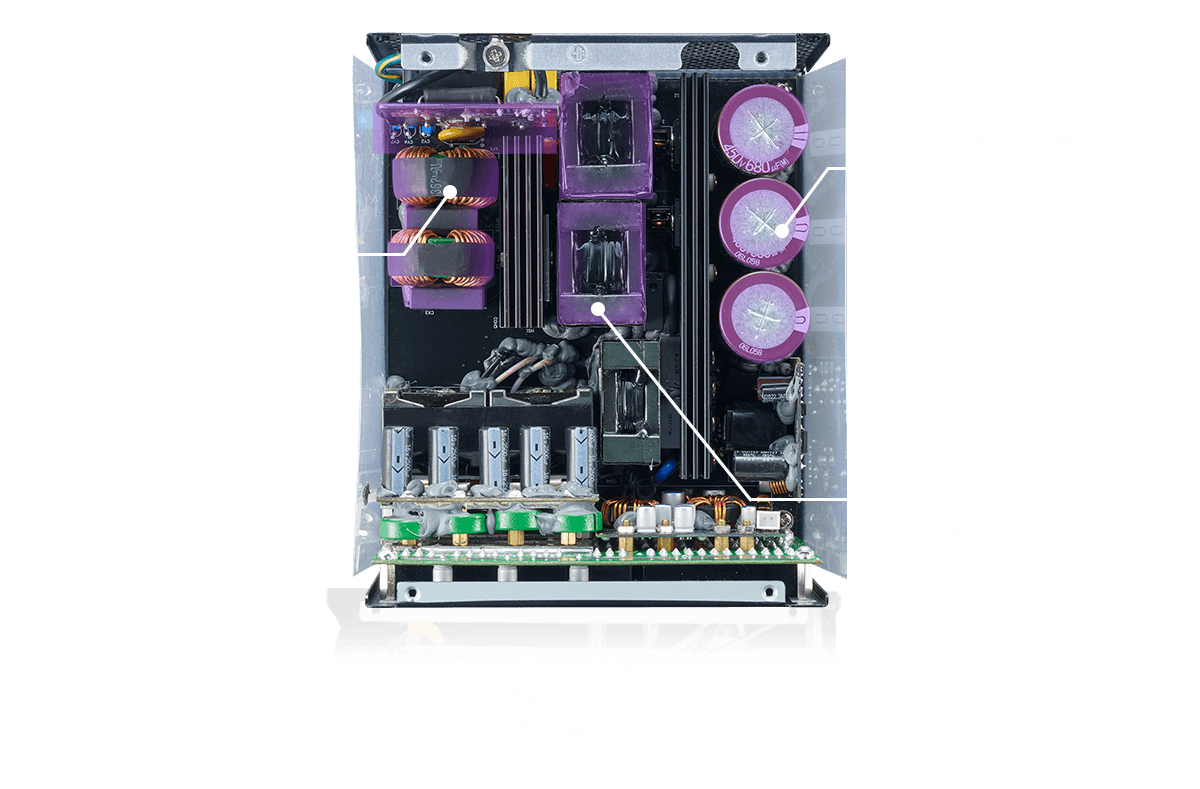

| PFC | 主动 PFC |
| 输入电压 | 200 - 240V |
| 输入电流 | 12A |
| 输入频率 | 50 - 60Hz |
| 尺寸 (L x W x H) | 180 x 150 x 86mm |

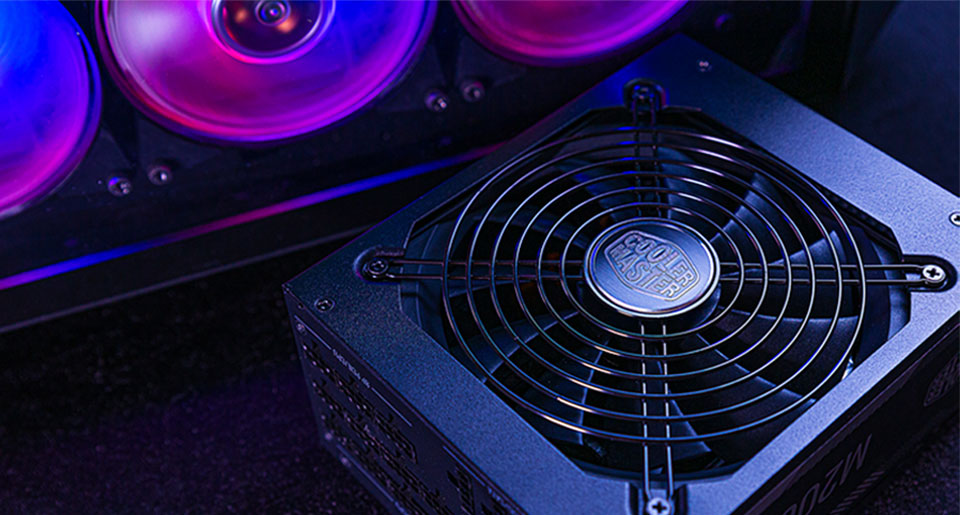

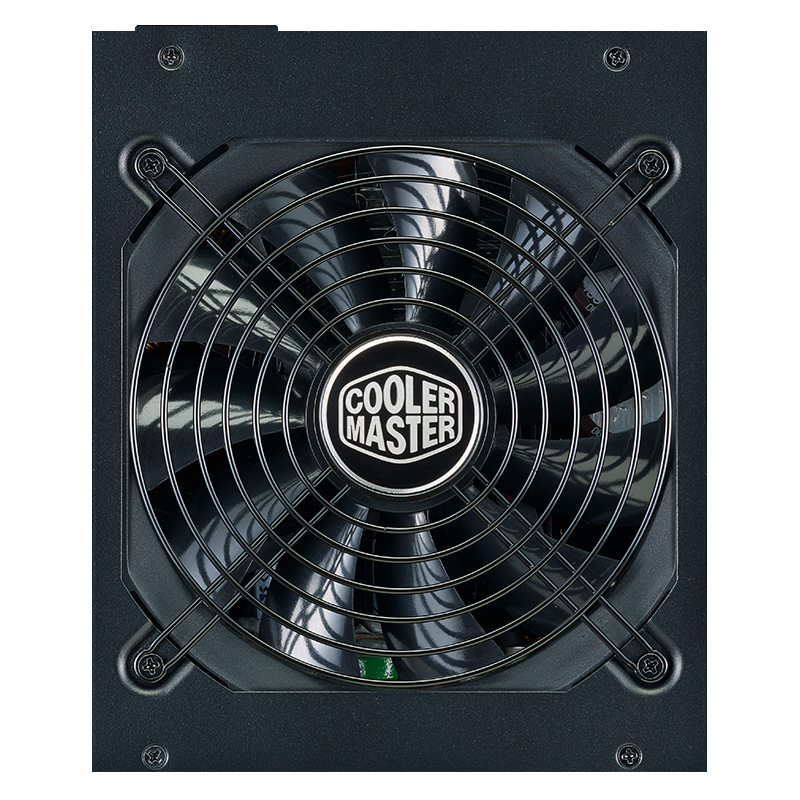

| 风扇尺寸 | 135mm |
| 风扇轴承 | DBB |

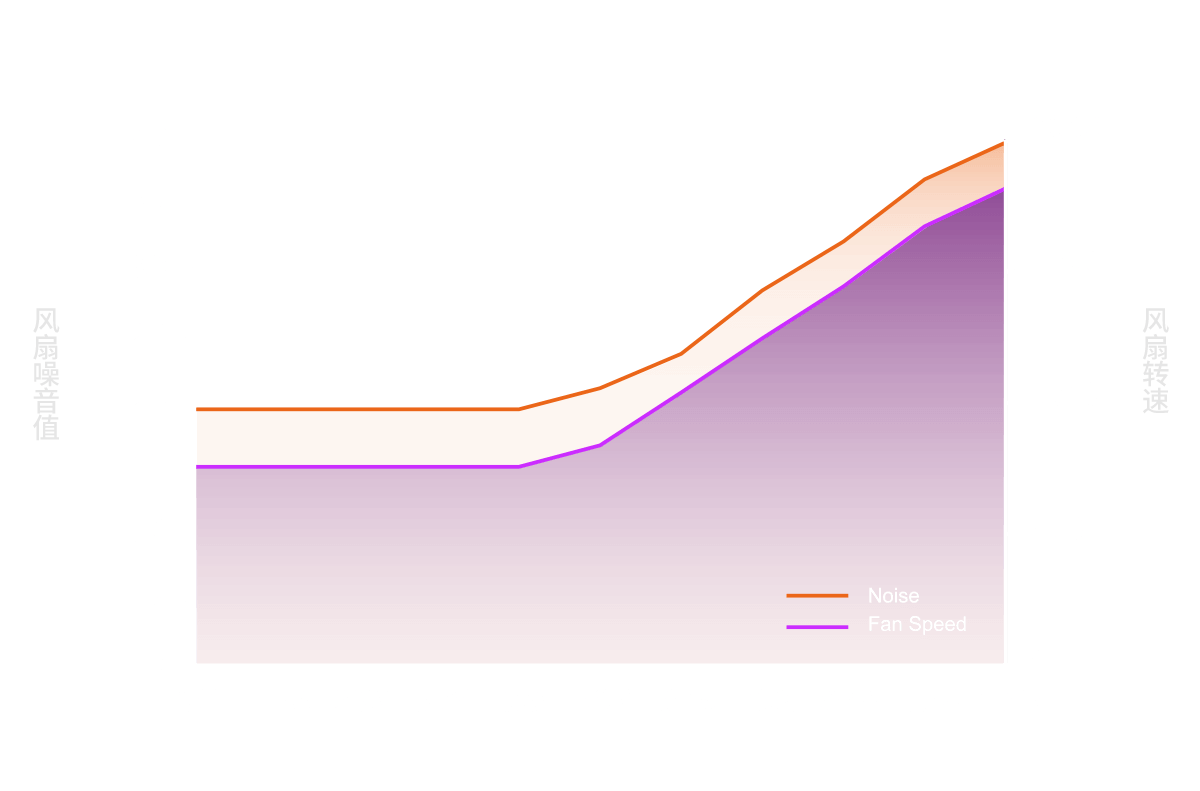

| 风扇转速 | 2400 RPM |

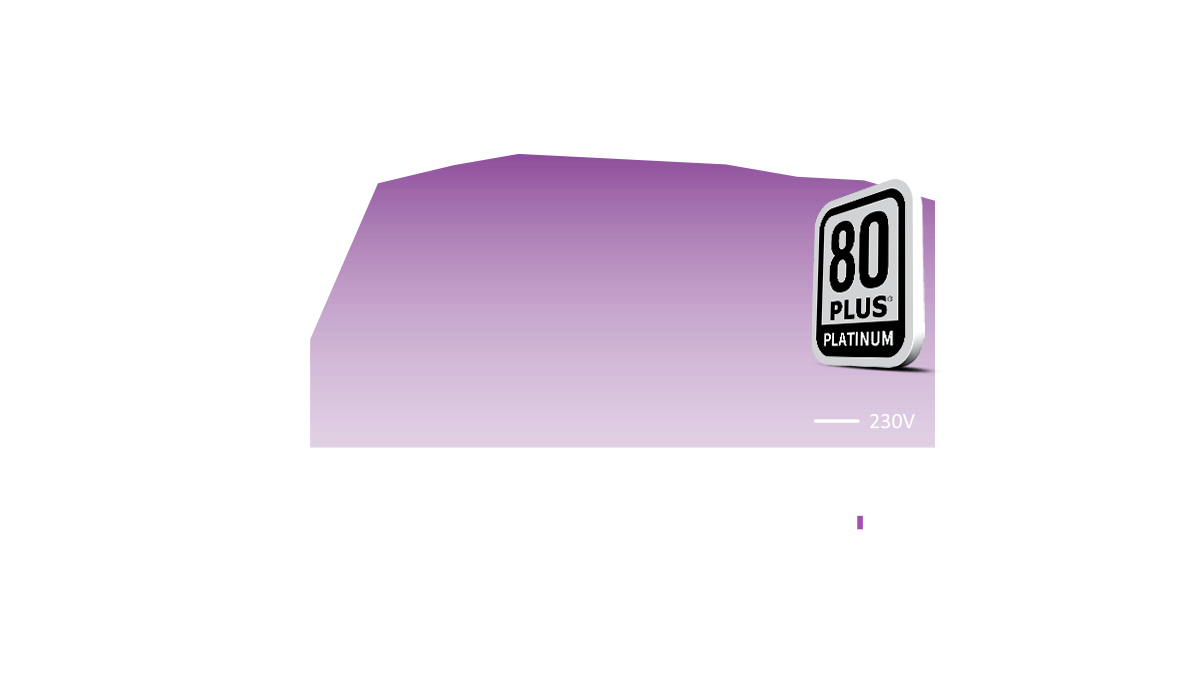

| 转换效率 | 典型负载下高达 94% |
| 80 PLUS 认证 | 80 PLUS 白金认证 |
| ErP 2014 Lot 3 | Yes |
| 工作温度 | 50℃ |
| P G 信号 | 100 – 150ms |
| 保持时间 | >16ms |
| 平均无故障时间 | >100,000 hours |
| 保护 | OPP/ OVP/ OCP/ UVP/ SCP/ OTP/ Surge & Inrush Protection |
| 安规认证 | TUV, cTUVus, CE, CCC, EAC, BIS, UKCA, RoHS2.0 |

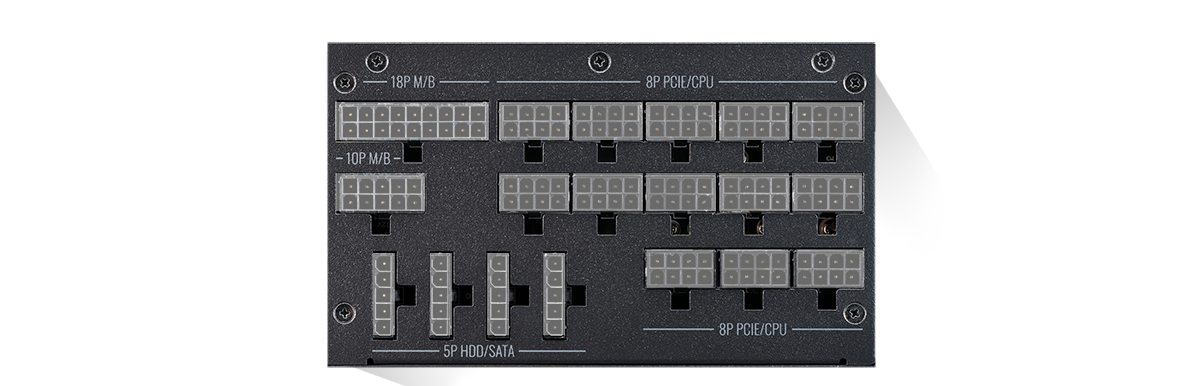

| 线材 | ATX 24 Pin | x1 = 1x (600mm) |
| EPS 4+4 Pin | x2 = 2x (750mm) |
| SATA | x12 = 3x (500 + 150 + 150 + 150mm) |
| Peripheral 4 Pin | x3 = 1x (500 + 150 + 150mm) |
| FDD | x1 = 1x (150mm) |

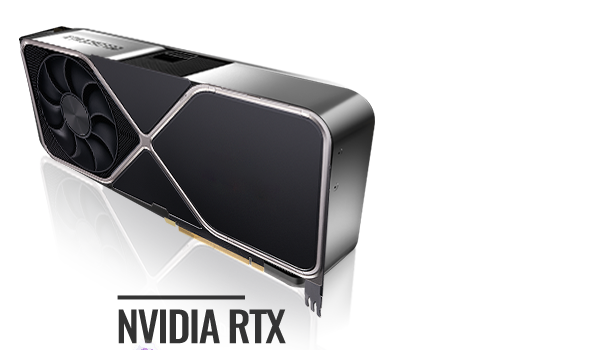

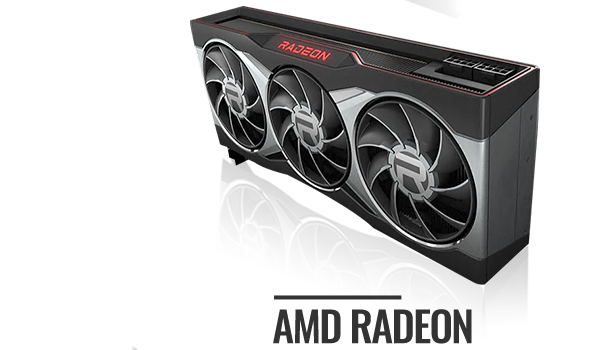

| PCI-e 6+2 Pin | x4 = 4x (750mm) , x14 = 7x (650 + 120mm) |
